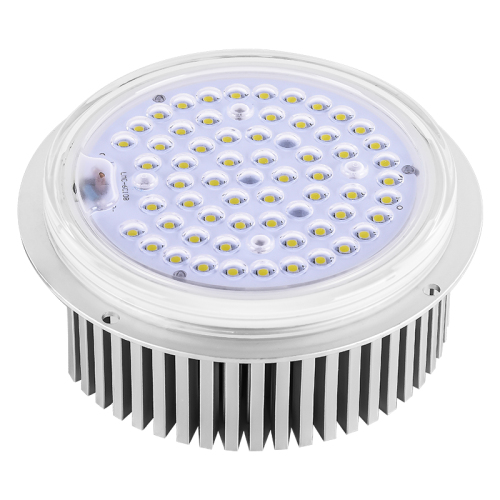

150w 3030 Round SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light

SKU:PCB150WHB
Product Name:Hot Sale 150w 3030 SMD LED UFO High Bay Light Module 60/90/120 DegreeModel No.:HH-49-204-90-3030
Beam Angle:60,90, 120 DegreeLENS Size:Dia 200mm Height 7.48mm
Material:Optical Grade PCLED CHIP:3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance:91%Application:High Bay Light/Street Light
PCB Size:195mm Diameter, 1.5mm ThicknessCircuit:6 Series 34 Parallel

Quick Detail:

Model No: HH-49-204-60-3030
Material: PC
Beam Angle : 60/90/120 degree
Lens size: Dia 200mm Height 7.48mm
PCB size: 195mm diameter, 1.5mm thickness
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 204 LED Array lens with PCB Module is best choice for High bay light 150w.
  2. Industry-leading thermal management utilizing technology
  3. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  4. The LED retrofit kits contain no any mercury or lead.
  5. Does not produce UV rays that harm people’s eyes.
  6. Directional light means no light pollution, dark sky compliance.
  7. Optic lenses are available for projects that need smaller beam angles, like 90/120 degree.


Specifications:


1, Product Name

Hot sale 150w 3030 SMD LED UFO High Bay light module 60/90/120 degree

2, Model No

HH-49-204-90-3030

3, Main parts

 Round lens and  PCB board with lens

4, Lens Material

PC

5, Lens size

Dia 200mm Height 7.48mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

7-10  work days for 10000 sets

10, Angle

60 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia
